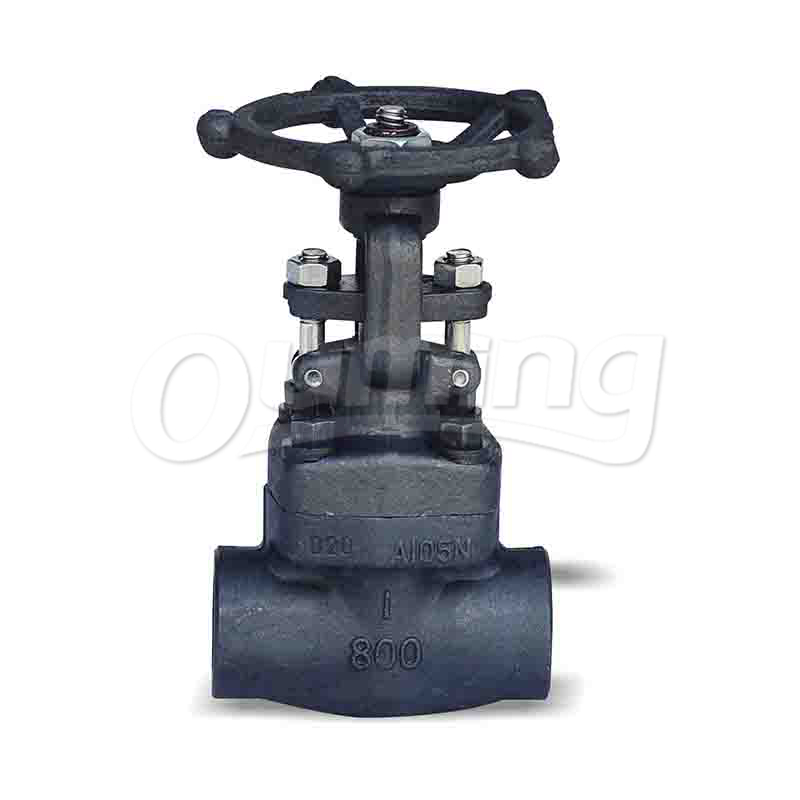

Forged Steel Gate Valve
OMIE Forged Steel Gate valves are used for small bore or high-pressure piping applications below 2 inches. Gate Valves are generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions.
- Quality stability: the implementation of the whole process of quality monitoring, meticulous, all aspects of detection!
- Reasonable price: effective internal cost control, reduce expenses, let benefit customers!
- Fast delivery: advanced production line, sufficient stock, shorten the delivery time!
- Tel：0577-85989858
Details
Design
OMIE Forged Steel Gate valves are used for small bore or high-pressure piping applications below 2 inches. Gate Valves are generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions.
Range of Materials
Standard body/bonnet materials include nine grades of carbon, low alloy and stainless steel, for special applications they can be supplied in other grades of ally and stainless steel, there’s a full range of trim materials to match any service optional packing and gasket materials are available for a full range of service conditions.
Applicable Standards:
●STEEL GATE VALVES, API 602
●STEEL VALVES,ASME B16.34
●FACE TO FACE, MANUFACTURER STANDARD
●FACE TO FACE, FLANGED ,ASME B16.10
●END FLANGES,ASME B16.5
●BUTTWELDING ENDS,ASME B16.25
●SOCKET-WELDING ENDS,ASME B16.11
●SCREWED ENDS,ASME B1.20.1
●INSPECTION AND TEST, API 598
Design descriptions:
●OUTSIDE SCREW AND YOKE (OS&Y)
●BOLTED BONNET,WELDED BONNET OR PRESSURE SEAL BONNET,EXTENTED STEM
●FULL BORE OR STANDARD BORE
●SINGLE WEDGE,FULLY GUIDED
●RENEWABLE SEAT RINGS
●YOKE INTEGRAL WITH BONNET
●RISING STEM AND NON-RISING HANDWHEEL
●SW,SOCKET-WELDING ENDS
●SC,SCREWED ENDS
●BW,BUTTWELDING ENDS
●FLANGED ENDS
